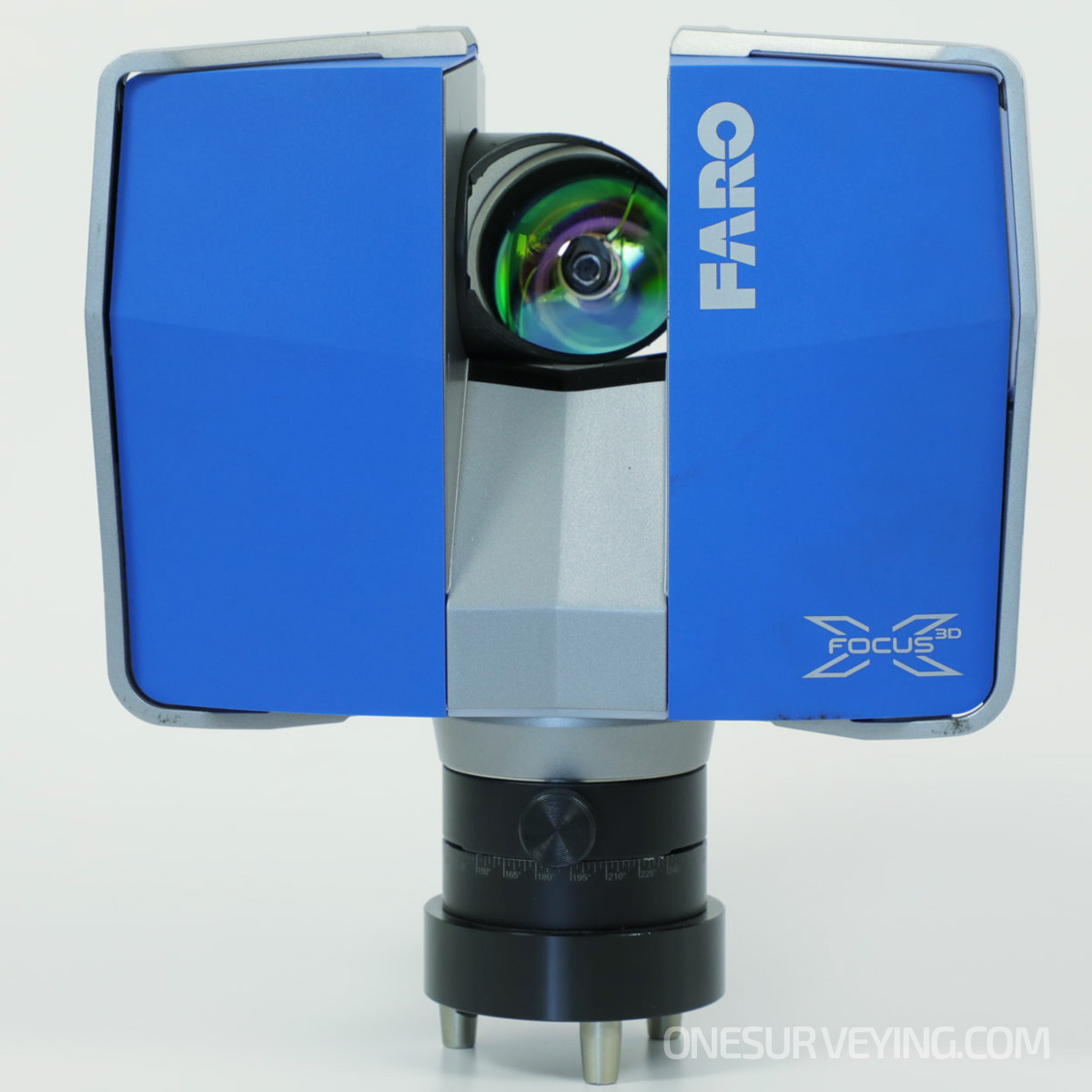

Faro Focus3D X 330 Laser Scanner

Contact form

Faro Focus3D X 330 for sale, very lightly used as good as new

Year of manufacture 2014, the FARO Scene ver. 5.4 included, in excellent condition ready to working order

Faro Focus3D X 330 for sale includes:

  • FARO Focus3D X 330
  • 2x Power Block battery
  • Charging Station
  • Power Cable
  • 32GB SD Memory Card with Case
  • Protection Cover with Foam
  • Panorama Tripod QR
  • Quick Charge Power Supply
  • Tool Kit
  • Calibration Documents
  • Pelican case

Faro Focus3D X 330  | The perfect instrument for 3D documentation and land surveying

The FARO Focus3D X 330 scan quality has been increased and noise has been reduced, providing precise three dimensional models in a photo-realistic style. These advances in performance did not come at the expense of safety as the Focus3D X 330 includes a Class 1 ”eye safe” laser. It's minimal weight, small size, touch-screen, SD-card and a battery life of 4.5 hours make the Focus3D X 330 unbeatable and easy-to-use. It is increased range and scan quality the FARO Focus3D X 330 considerably reduces the effort involved in measuring and post-processing.

Faro Focus3D X 330 Features:

  • Extended Scanning: 330M RANGEThe Focus3D X 330 can scan objects up to 330 meters away. Large buildings, land-site exca-vations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion
  • Easy positioning - Integrated GPS Receiver: With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.
  • Outdoor Scanning Capability : Focus3D X 330 is able to perform fast and highly precise scanning in direct sunlight.
  • Low Noise Perfomance: The FARO Focus3D X 330 delivers extraordinary scan data quality at extended range with very low noise.
  • Wireles LAN WAN : Remote control permits you to start, stop, and view scans at a distance.

Faro Focus3D X 330 Technical Spesification

Ranging unit

  • Unambiguity interval: By 122 till 488 Kpts/sec at 614m; by 976 Kpts/sec at 307m
  • Range Focus3D X 330: 0.6m - 330m indoor or outdoor with upright incidence to a 90% reflective surface
  • Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
  • Ranging error1 : ±2mm

Colour unit

  • Resolution: Up to 70 megapixel colour
  • Dynamic colour feature: Automatic adaption of brightness
  • Parallax: Co-axial design

Deflection unit

  • Field of view (vertical/horizontal): 300°/ 360°
  • Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) / 0,009° (40.960 3D-Pixel on 360°)
  • Max. vertical scan speed: 5.820rpm or 97Hz

Laser (optical transmitter)

  • Laser class: Laser class 1
  • Wavelength: 1550nm
  • Beam divergence: Typical 0.19mrad (0,011°) (1/e, halfangle)
  • Beam diameter at exit: Typical 2.25mm (1/e)

Data handling and control

  • Data storage: SD, SDHC™, SDXC™; 32GB card included
  • Scanner control: Via touchscreen display and WLAN
  • New WLAN access: Remote control, scan visualisation are possible on mobile devices with Flash®


  • Dual axis compensator: Levels each scan: Accuracy 0.015°; Range ± 5°
  • Height sensor: Via an electronic barometer the height relative to a fixed point can be detected and added to a scan.
  • Compass4: The electronic compass gives the scan an orientation. A calibration feature is included.
  • GPS: Integrated GPS receiver


  • Power supply voltage: 19V (external supply), 14.4V (internal battery)
  • Power consumption: 40W and 80W (while battery charges)
  • Battery life: 4.5 hours
  • Ambient temperature: 5° - 40°C
  • Humidity: Non-condensing
  • Cable connector: Located in scanner mount
  • Weight: 5.2kg
  • Size: 240 x 200 x 100mm
  • Maintenance / calibration: Annual
