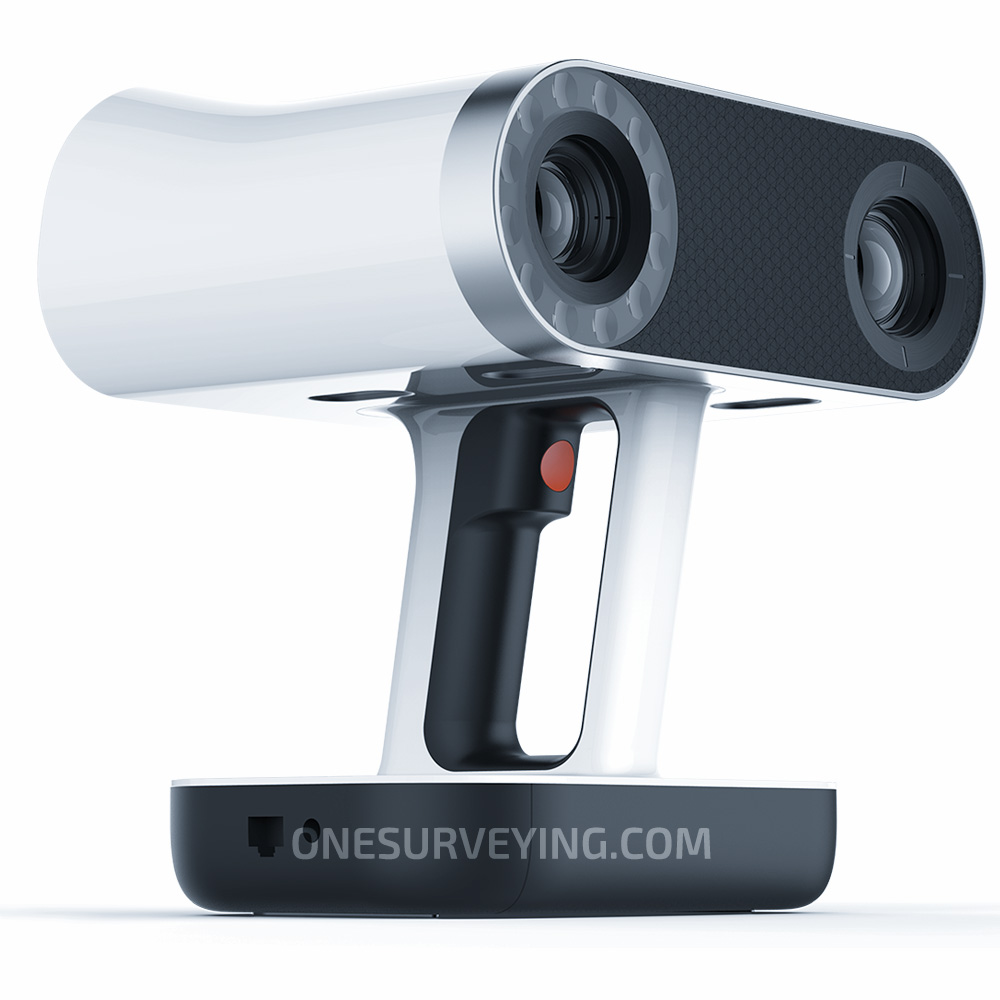

Artec Leo 3D Scanner

$ 15500
Contact form

Artec Leo a smart professional 3D scanner for a next-generation user experience. See your object projected in 3D directly on the HD display The first 3D scanner to offer onboard automatic processing, Artec Leo is able to provide the most intuitive workflow, making 3D scanning as easy as taking a video. As you scan your object, see the 3D replica being built in real time on Leo’s touch panel screen. Rotate the 3D model, check if you have captured all areas, and fill in any parts you may have missed.

Artec Leo 3D Scanner Features

Breakthrough 3D scanning speed: The 80 frames per second 3D reconstruction rate makes Artec Leo the fastest professional handheld 3D scanner on the market. Furthermore, with its large field of view, Artec Leo can 3D scan and process even large objects and scenes fast and accurately. And for even greater precision, users can point the scanner closer to the object to pick up intricate detail, just as they would zoom in with a video camera

A fully mobile scanning experience: Thanks to the powerful embedded processor and the inbuilt battery, Artec Leo gives you true freedom in 3D scanning. With no need to connect to a computer or plug into a mains power source, you can hold Leo in one hand and walk around freely, scanning your object unhampered by any wires or additional equipment. Purchase supplementary battery modules for unlimited 3D scanning on expeditions or in remote areas with no power supply.

The smartest 3D scanner on the market: Artec Leo contains state-of-the-art technologies, including the NVIDIA Jetson platform, which is the scanner’s own internal computer, featuring Quad-core ARM Cortex-A57 MPCore CPU and NVIDIA Maxwell 1 TFLOPS GPU with 256 NVIDIA CUDA Cores; a built-in 9 DoF inertial system – accelerometer, gyro and compass – which allows the scanner to understand its position and environment; and a two-in one optical system designed to spec for the most exact texture to geometry mapping.

Designed for usability: With a built-in battery, touch panel screen and wireless connectivity, Artec Leo takes handheld 3D scanning to the next level. Have complete freedom of movement when you scan, stream video to a second device via Wi-Fi or Ethernet, if an additional display is needed, and upload your data at the touch of a button. Add to these features a carefully balanced, ergonomic design, devised to make 3D scanning in one hand easy and comfortable, and you have a next-generation professional 3D scanner, built with usability in mind.

Applications
Since the user is able to capture both expansive areas and fine detail, Artec Leo can be used for scanning a range of objects, from small mechanical parts to the human body, cars, boats or crime scenes. As with all Artec 3D scanners, the applications are wide and far-reaching, including industrial manufacture and quality control, healthcare, forensics, VR and e-commerce. Furthermore, Artec Leo’s new wireless functionality and internal processor allow for a wealth of integration possibilities, making it even easier to streamline your application, regardless of the industry.

General Specifications

Artec Leo

Artec Eva

Artec Space Spider

Working distance 0.35 – 1.2 m 0.4 – 1 m 0.2 – 0.3 m
Volume capture zone 160,000 cm³ 61,000 cm³ 2,000 cm³
Linear field of view, H × W @ closest range 244 × 142 mm 214 × 148 mm 90 × 70 mm
Linear field of view, H × W @ furthest range 838 × 488 mm 536 × 371 mm 180 × 140 mm
Angular field of view, H × W 38.5 × 23° 30 × 21° 30 × 21°
3D resolution, up to 0.5 mm 0.5 mm 0.1 mm
3D point accuracy, up to 0.1 mm 0.1 mm 0.05 mm
3D accuracy over distance, up to 0.03% over 100 cm 0.03% over 100 cm 0.03% over 100 cm
Ability to capture texture Yes Yes Yes
Texture resolution 2.3 mp 1.3 mp 1.3 mp
Colors 24 bpp 24 bpp 24 bpp
3D reconstruction rate for real-time fusion, up to 22 fps 16 fps 8 fps
3D reconstruction rate for 3D video recording, up to 44 fps N/A fps N/A fps
3D reconstruction rate for 3D video streaming, up to 80 fps 16 fps 8 fps
Data acquisition speed, up to 3 mln points / sec. 2 mln points / sec. 1 mln points / sec.
Structured light source VCSEL flash bulb (no laser) blue LED
Position sensors Built-in 9 DoF inertial system
Display / touchscreen Integrated 5.5" half HD, CTP. Optional Wi-Fi / Ethernet video streaming to external device USB streaming through an external computer USB streaming through an external computer
Multi core processing Embedded processors: NVIDIA Jetson TX1, Quad-core ARM Cortex-A57 MPCore Processor, NVIDIA Maxwell 1 TFLOPS GPU with 256 NVIDIA CUDA Cores On external computer On external computer
Internal hard drive 256 GB SSD

Output formats


3D mesh formats OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
3D point cloud formats BTX, PTX BTX, PTX BTX, PTX
Formats for measurements CSV, DXF, XML CSV, DXF, XML CSV, DXF, XML

Common specifications



Weight 2.6 kg (5.7 lb) 0.9 kg (2 lbs) 0.8 kg (1.8 lbs)
Dimensions, H × D × W 231 × 162 × 230 mm 262 × 158 × 63 mm 190 × 140 × 130 mm
Power source In-built exchangeable battery,
optional mains power
Mains power
or external battery pack
Mains power
or external battery pack
Interface Wi-Fi, Ethernet, SD card 1 × USB 2.0, USB 3.0 compatible 1 × USB 2.0, USB 3.0 compatible

Requirements


Supported OS Scanning: not required
Post-processing: Windows 7, 8 or 10 - x64
Windows 7, 8 or 10 – x64 Windows 7, 8 or 10 – x64
Minimum computer requirements Scanning: no computer required
Post-processing: i5 or i7, 32GB RAM
i5 or i7 recommended, 12GB RAM i5 or i7 recommended, 18GB RAM
