Fluke Ti480 PRO 60 Hz Infrared Camera

$4900

Contact form

Description

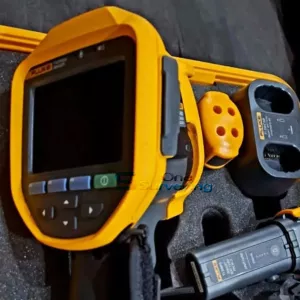

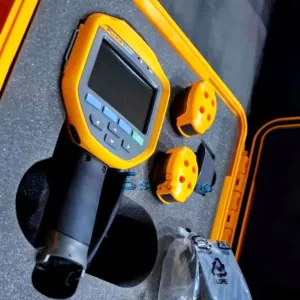

Sale Fluke Ti480 PRO 60 Hz Infrared Camera 640 × 480, like new in its original packagin. Fully tested and serviced by Fluke to ensure measurement reliability, quality control, and traceability to the Fluke working standards.

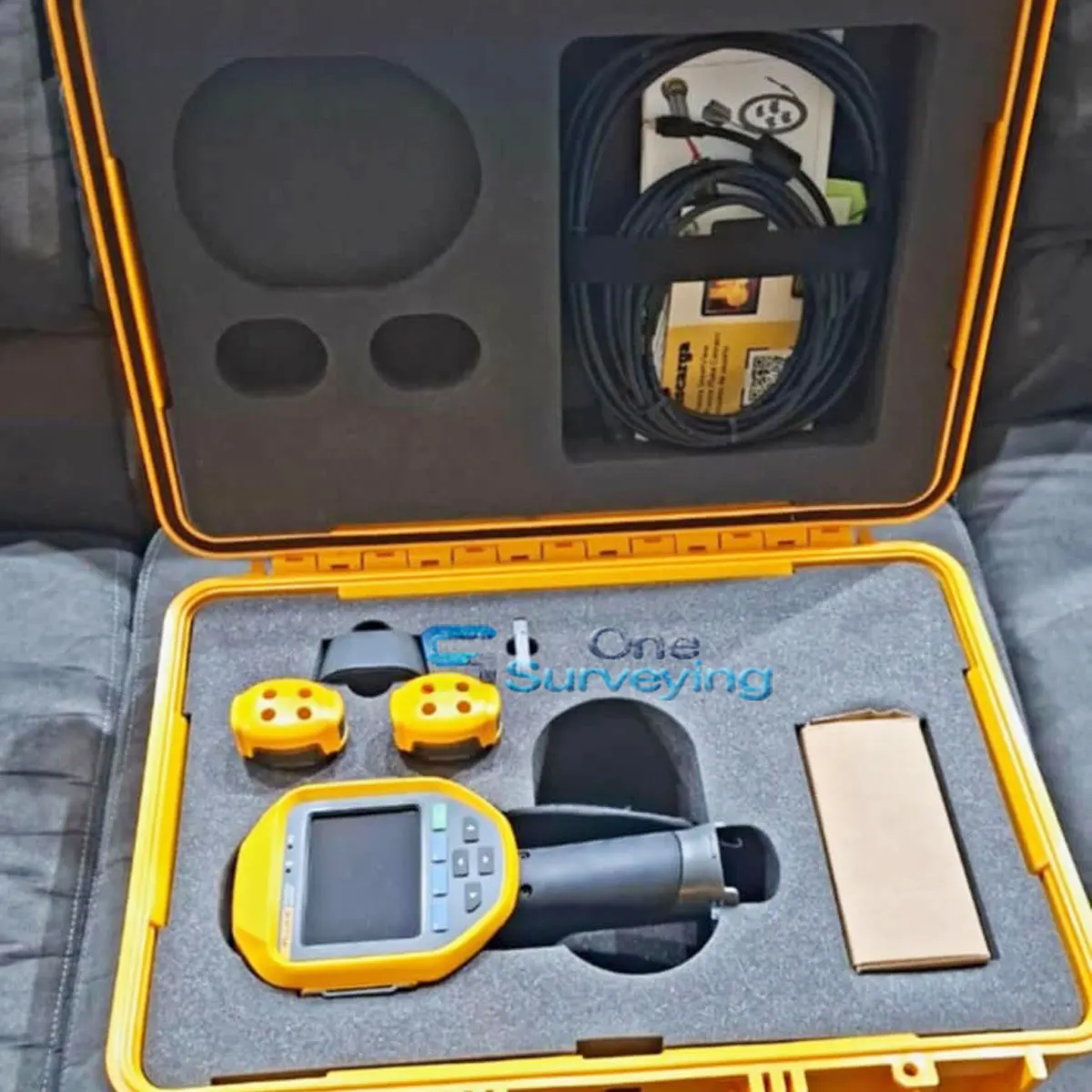

Includes:

Ti480-PRO 60Hz Thermal imager with standard infrared lens
AC power supply and battery pack charger (with universal AC adapters)
Two, rugged lithium-ion smart battery packs

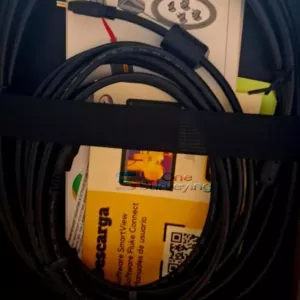

USB cable
HDMI video cable (not shown)
4 GB micro SD card

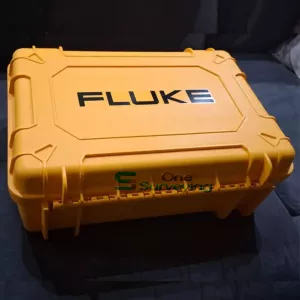

Rugged, hard carrying case
Adjustable hand strap

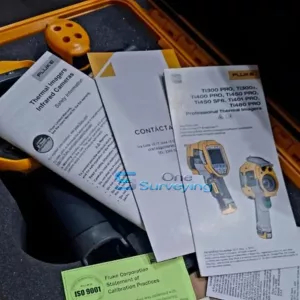

Available by free download Fluke Connect SmartView desktop software and user's manual

Fluke Ti480 PRO 60 Hz Infrared Camera

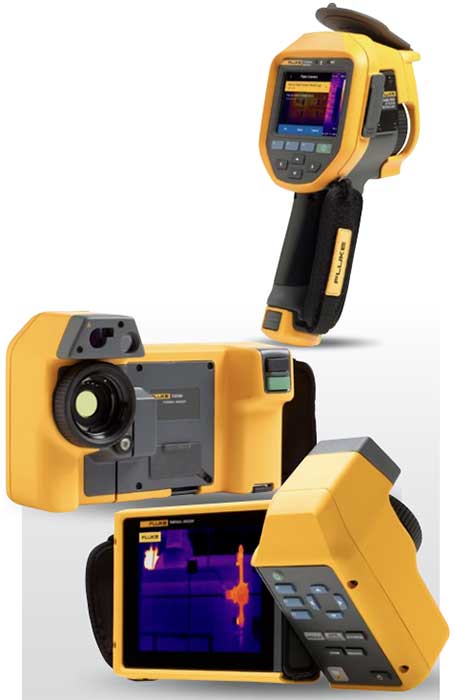

With a rugged pistol-grip design, this infrared camera enables thermographers to assess and solve mission-critical problems before they result in downtime. Edit and analyze images directly on the camera featuring the SuperResolution mode that provides four times the standard resolution.

Features

Increased sensitivity to visualize temperature differences
Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and nine color palettes
More intuitive visual interface, improved, user-tested, touch screen interface
More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target
Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations

Applications

Industrial maintenance
Heavy commercial facility maintenance
Oil and gas maintenance
Veterinary
Reliability inspections (PdM)
Heavy building diagnostics - building envelope and construction defects
Electrical, water, gas utilities
Chemical processing
Machinery, instrumentation and appliances

Fluke Connect Compatible

We recognize that it’s not one approach for all—each industry, business and success measure is unique. Optimally engineered, Fluke cameras are aligned to drive efficiency through the latest in thermography technology advancements. They offer everything needed for industrial professionals to safely, quickly and easily find, assess and solve mission-critical problems before they result in downtime, become costly or even disastrous.

In-focus images in a matter of seconds. LaserSharp™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target and immediately adjusts the focus
Shoot images near…and far. Interchangeable Smart Lenses require no calibration and give you the versatility and image quality needed to conduct inspections in almost any environment
Simply the best optics to transmit energy and produce high quality infrared images. Fluke uses only 100 % diamond-turned germanium lenses with specialty coatings

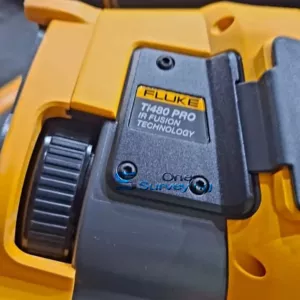

See more details when you adjust the level of infrared and visible light with patented IR-Fusion™ technology
Edit and analyze images on camera—edit emissivity, enable color alarms and markers, and adjust IR-Fusion™ visual and infrared image blending
Manage data, capture multiple measurements (mechanical, electrical and thermal) and organize them by piece of equipment with Fluke Connect™ software
Inspect multiple complex targets or targets from varying distances
Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus. The camera automatically processes a stack of images focused near and far

Specifications: Fluke Ti480 PRO Infrared Camera

Key features
IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
Detector resolution	640 x 480
SuperResolution	Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image
Infrared Resolution	307,200 pixels
MultiSharp™ Focus	Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus	Yes, for consistently in-focus images
Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Ruggedized touchscreen display	3.5 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design for one-handed use	Yes
Digital zoom	2x and 4x

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	≤-20 °C to 1000 °C (-4 °F to 1832 °F)
Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)*	≤0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
^*Best possible

Wireless connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible	Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect® Assets optional software	Yes*, assign images to assets and create work orders. Easily compare measurement types in one location
Fluke Connect® Instant Upload	Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect® tool compatible	Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen

IR-Fusion® technology
Adds the context of the visible details to your infrared image
AutoBlend™ mode	Min, Mid, Max IR plus full visible on camera; continously variable in software
Picture-In-Picture (PIP)	Yes
Built-in digital camera (visible light)	5 MP

Lenses
Standard lens	IFOV (spatial resolution)	0.93 mRad, D:S 1065:1
	Field of view	34 °H x 24 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Picture-In-Picture and full screen
Optional 2x telephoto smart lens	IFOV (spatial resolution)	0.46 mRad, D:S 1529:1
	Field of view	17 °H x 12 °V
	Minimum focus distance	45 cm (approx. 18 in)
	IR-Fusion® technology	Picture-In-Picture and full screen
Optional 4x telephoto smart lens	IFOV (spatial resolution)	0.23 mRad, D:S 2941:1
	Field of view	6 °H x 4.5 °V
	Minimum focus distance	1.5 cm (approx. 60 in)
	IR-Fusion® technology	N/A
Optional wide-angle smart lens	IFOV	1.85 mRad, D:S 377:1
	Field of view	48 °H x 34 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion® technology	Full screen

Level and span	Smooth auto and manual scaling
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0 °C (3.6 °F)
Minimum span (in auto mode)	3.0 °C (5.4 °F)

Data storage and image capture
Extensive memory options	Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage
Image capture, review, save mechanism	One-handed image capture,review, and save capability
Image file formats	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Memory review	Thumbnail and fullscreen review
Software	SmartView® software - full analysis and reporting software and Fluke Connect® system
Export file formats with SmartView® software	Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation	60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required
IR-PhotoNotes™	Yes (5 images)
Text annotation	Yes
Video recording	Standard and radiometric
File formats video	Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Streaming video (remote display)	Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor
Remote control operation	Yes, through SmartView® software or Fluke Connect® mobile app
Auto capture (temperature and interval)	Yes

Battery
Batteries (field-replaceable, rechargeable)	Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life	2-3 hours per battery (*Actual life varies depending on settings and usage)
Battery charge time	2.5 hours to full charge
Battery charging system	Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving	User selectable sleep and power off modes

Color palettes
Standard palettes	9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes	9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted

General specifications
Frame rate	60 Hz or 9 Hz versions
Laser pointer	Yes
LED light (torch)	Yes
Color alarms (temperature alarms)	High temperature, low temperature, and isotherms (within range)
Center-point temperature measurement	Yes
Spot temperature	Hot and cold spot markers
User-definable spot markers	3 user-definable spot markers
Center box	Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band	7.5 μm to 14 μm (long wave)
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity	10% to 95% non-condensing
Safety	IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility	IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM	IEC 61326-1
US FCC	CFR 47, Part 15 Subpart B
Vibration	0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
Shock	25 g, IEC 60068-2-29
Drop	Engineered to withstand 2 meter (6.5 feet) drop with standard lens
Size (H x W x L)	27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in)
Weight (battery included)	1.04 kg (2.3 lb)
Enclosure rating	IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
