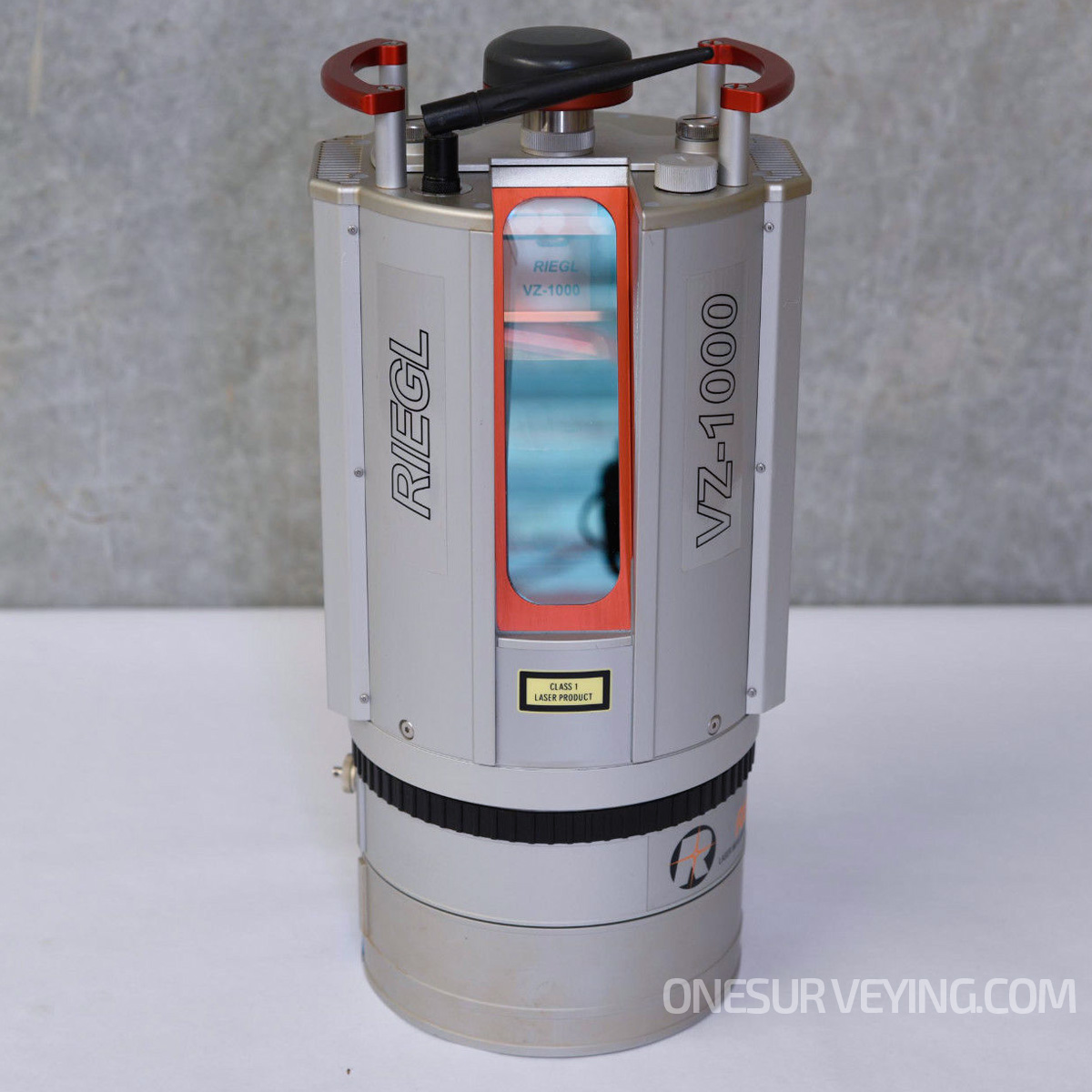

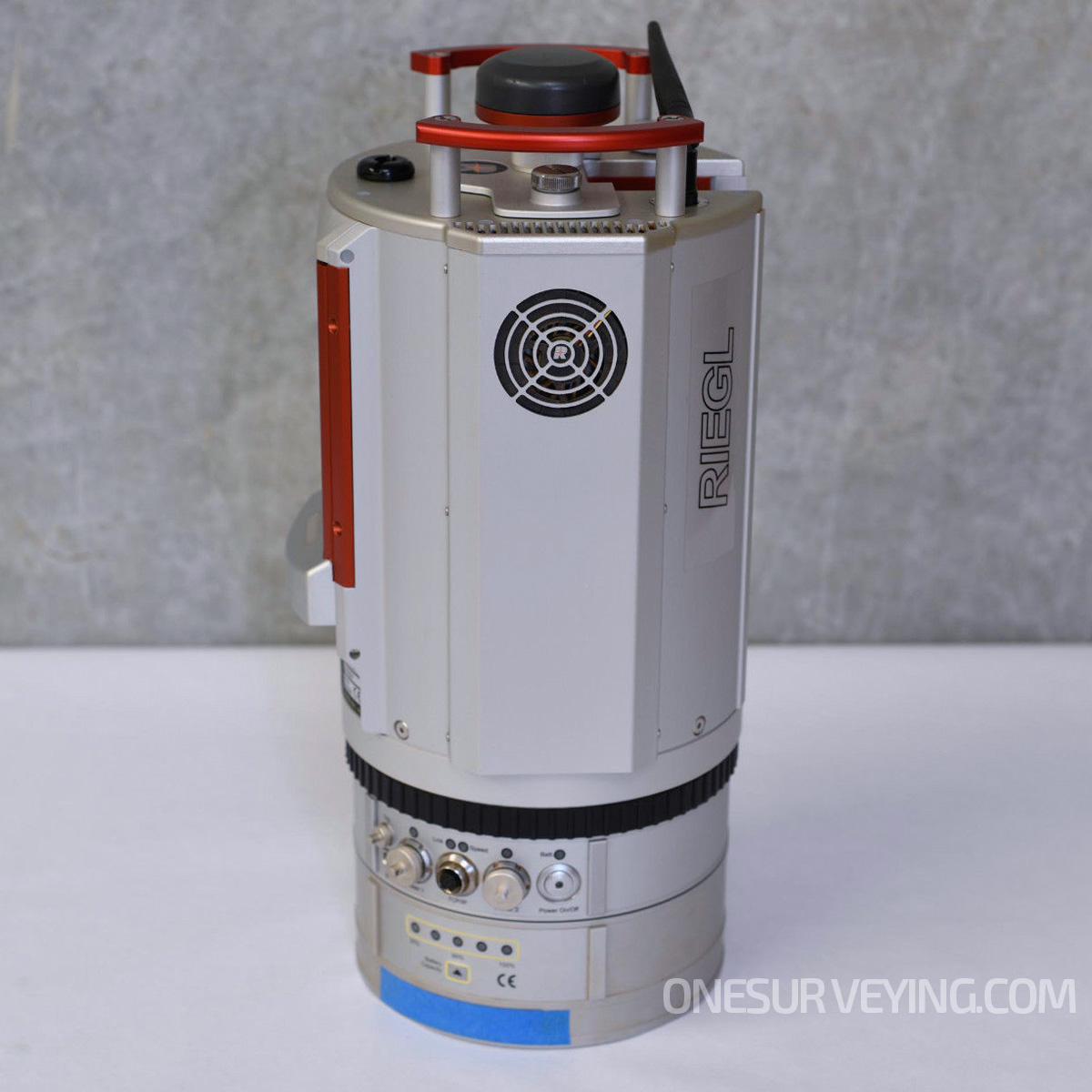

Used Riegl VZ-1000 3D Laser Scanner

Used Riegl VZ-1000 3D Laser Scanner, Like New, complete set, comes with all data and power cables. Has been tested, full function and ready to work

Used Riegl VZ-1000 sale includes:

• Riegl VZ-1000 3D Scanner
• Black External Battery, External Battery Charger, Battery Power Supply Cable
• 12v Power Supply Cable 1m
• 8x Scanner Targets - Cylinder
• Riegl VZ-1000 Scanner cables
• RiScan Pro and RiSolve V2.1.1 software
• Blanking Cap, Cap to 3/8 thread, Cap to Thread Mount
• GPS Cap
• Allen Key
• Long Antenna
• Debug Cable, External GPS Cable,TCP/IP Cable M12-M12 3m, 2 x TCP/IP Cable M12-MRJ45 0.3m
• External Power Supply/Battery Charger
• 10x Fuses
• Flight case
• Yellow pelican case to hold all of the accessories

The Riegl VZ-1000 is a high speed terrestrial laser scanner with a maximum range of around 1.4km. The unit is lightweight and compact and is supplied with an external NiMH battery capable of powering the scanner for around 5 hours (other external batteries can be used). RiSCAN PRO software is supplied for collection and processing of point cloud data.

Features

• Very long range more than 1400 m
• High speed data acquisition
• Wide field-of-view, controllable while scanning
• High-accuracy, high-precision ranging based on echo digitization and online waveform processing
• Multiple target capability
• Superior measurement capability in adverse atmospheric conditions
• High-precision mounting pads for optional digital camera
• Integrated inclination sensors, laser plummet, and compass
• Integrated GPS receiver with antenna
• Various interfaces (LAN, WLAN, USB 2.0)
• Internal data storage capability

Riegl VZ-1000 Specification

General

• Instrument Type: High-accuracy, high-precision ranging based on echo digitization and online waveform processing
• Data Storage32Gb onboard flash memory
• User Interface: Onboard colour display and keypad or external PC

System Performance

• Accuracy: 8mm
• Precision: 5mm

Laser Scanning System

• Type: Echo digitisation and waveform processing + full waveform recording
• Laser Class: 1
• Range1.4km @ 80%; 520m @ 10% albedo
• Scan RateUp to 122,000 points/sec
• Spot Size7mm at exit + 0.3mrad divergence
• Field of View: 360° (horizontal), 100° (vertical)

Electrical

• Power Supply: 11-32V DC
• Power Consumption: 82W typ., 90W max.
• Battery Type: External 18Ah NiMH supplied, other 12V source can be used
• Durationaround 5 hours of scanning

Environmental

• Operating temp.: 0° to +40° C (lower for short periods)
• Storage temp.: -10° to + 50° C
• IP Rating:IP64
• Altitude Limit: Specified to a maximum operating altitude of 2000m

Physical

• Dimensions: 190 x 195 x 370mm
• Weight: 9.8kg (scanner), 29.8kg (all accessories and case)
